Product Introduction

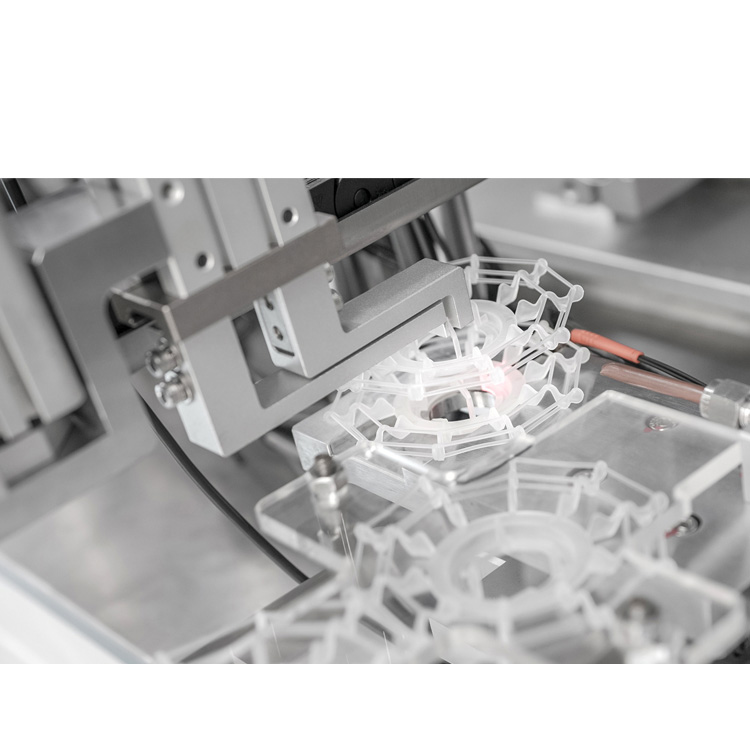

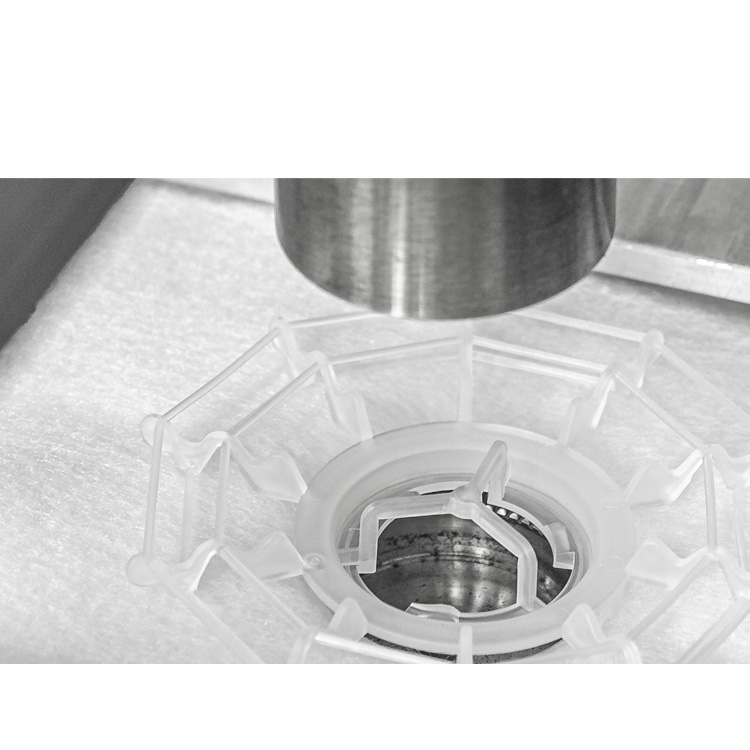

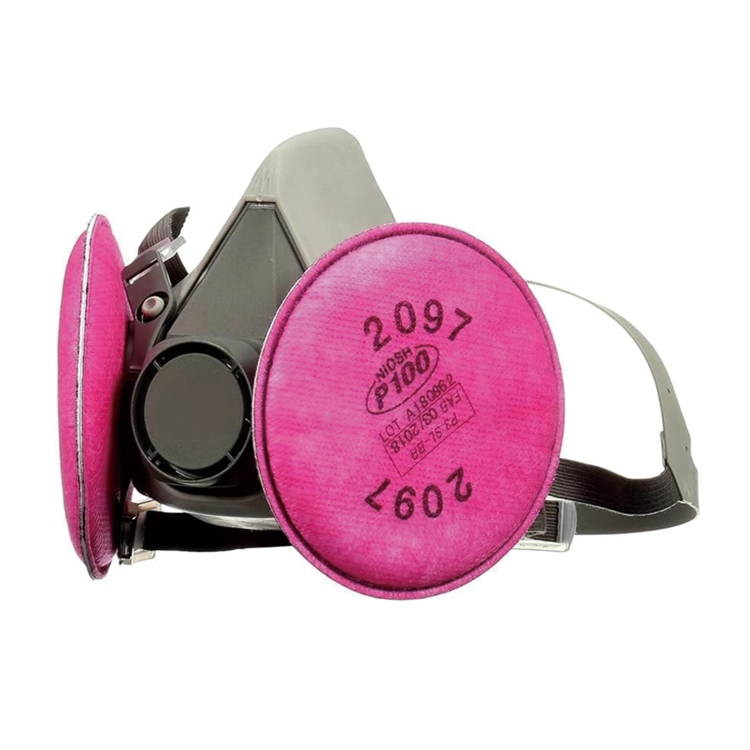

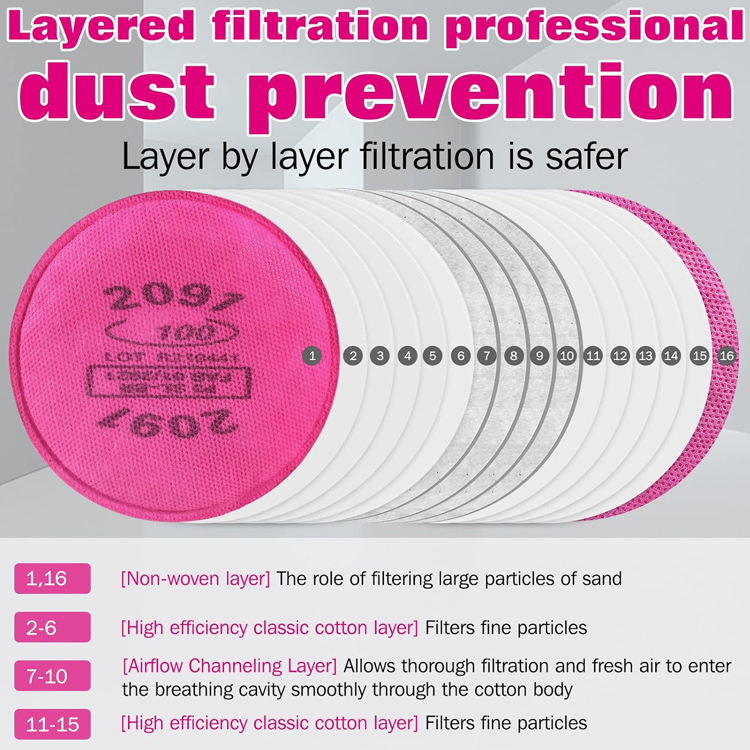

This machine is the production of manufacturing round respiratory cotton filter equipment, automatic cutting, punching, welding breathing valve onto the plastic frame, ultrasonic welding, cutting and other functions; The filter cotton pad is pre-cut to achieve single conveying, and the filter cotton does not affect the material utilization rate of the conveying structure of the machine but 20% increased compared with the conventional way.
Product Parameters
| Model | LY-KM02 |

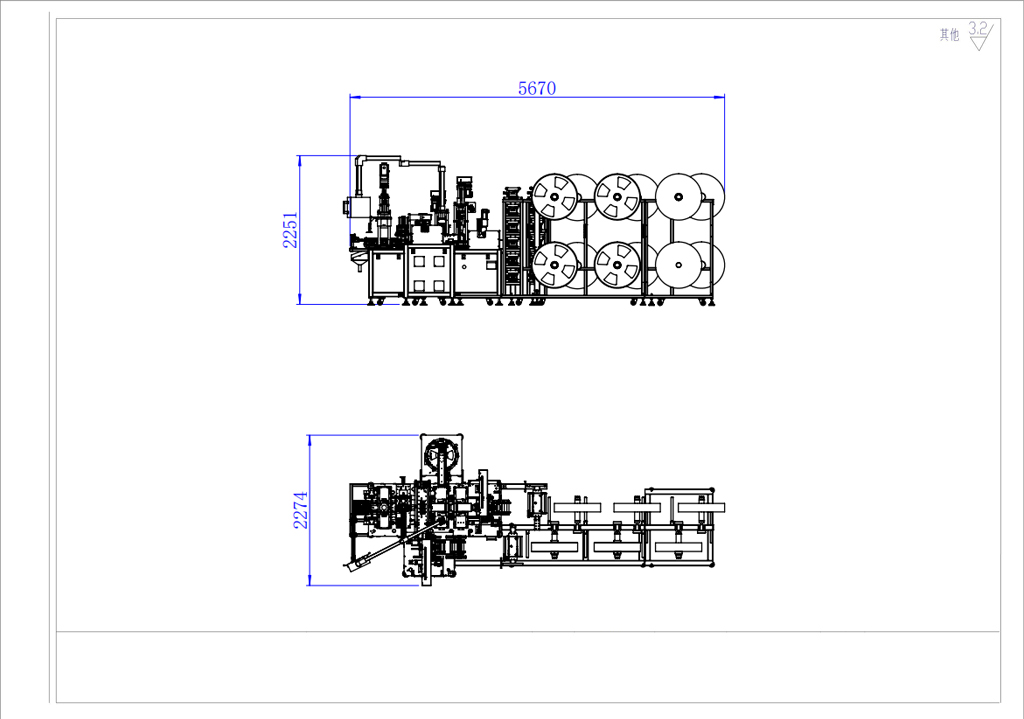

| Dimensions | 5670*2274*2251mm |
Output power
| 6Kw |
| Speed | 20-30pcs/min |
| Air pressure | 0.6-0.8 mpa |
| Weight | 2000KG |
| Power supply | Ac220v 50/60hz |
Applicable incoming material specifications (for reference only):
Item | Gram Weight | Width (mm) | Outer Diameter of Roll Material (mm) | Inner Diameter of Material Tube (mm) | Weight |
Cloth | 25-150 | 130-135 | Φ650 | Φ76.2 | Max 15kg |
Main Configuration |
Serial Number | Component Name | Quantity | Remarks |
1 | Material rack mechanism | 1 set |
|
2 | Material pulling mechanism | 1 set |
|
3 | Hole punching and buckle welding mechanism | 2 sets |
|
4 | Upper layer material collecting mechanism | 1 set |
|
5 | Upper layer material taking mechanism | 1 set |
|
6 | Pad printing mechanism | 1 set |
|
7 | Molding and welding mechanism | 1 set |
|
8 | Cutting mechanism | 1 set |
|
9 | Buckle conveying mechanism | 1 set |
|
10 | Finished product discharging mechanism | 1 set |
|
11 | Operating system | 1 set |
|
12 | Operation panel | 1 set |
|
Main Electrical Components |
Serial Number | Item | Brand |
|
1 | Cylinder | Airtac |
|
2 | Solenoid valve | Airtac |
|
3 | Servo motor | Inovance |
|
4 | PLC | Inovance |
|
5 | Bearing | Guoyou |
|
6 | Linear guide | HIWIN |
|
7 | Touch screen | Inovance |
|
8 | Circuit breaker | Chint |
|
9 | Button |
|
|
