Product Introduction

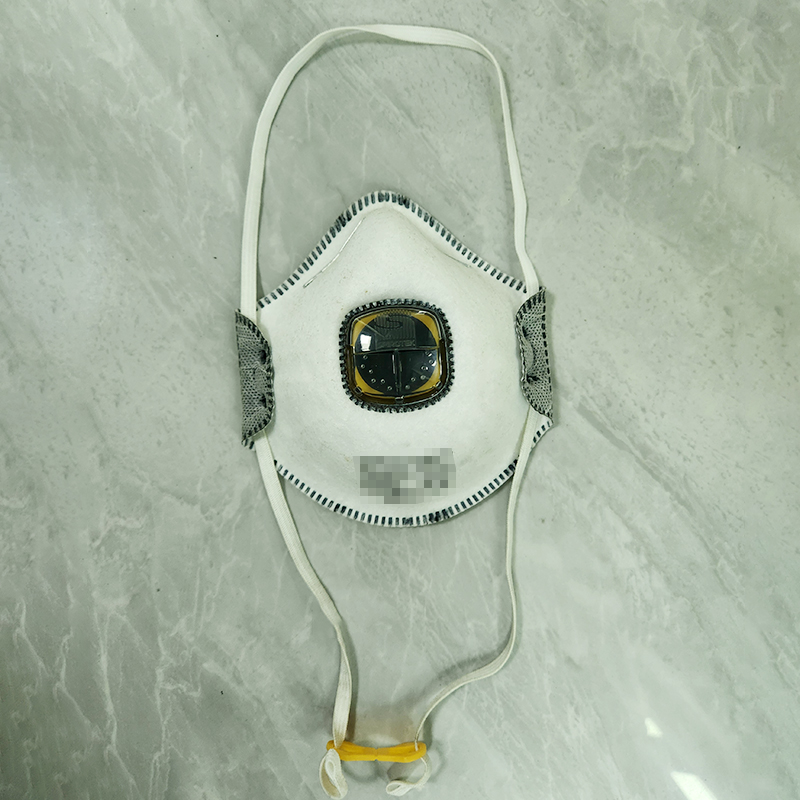

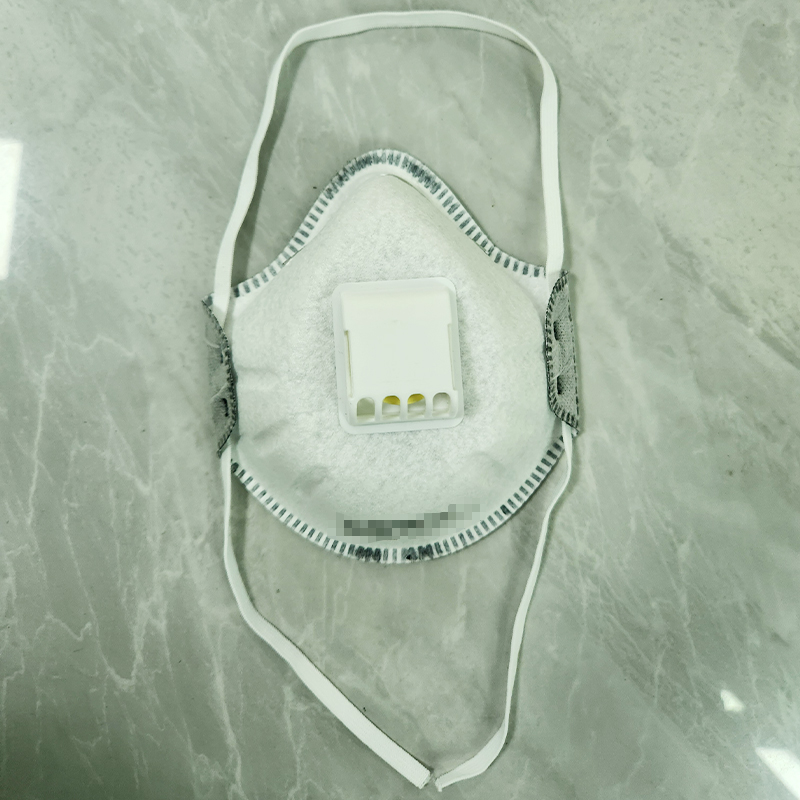

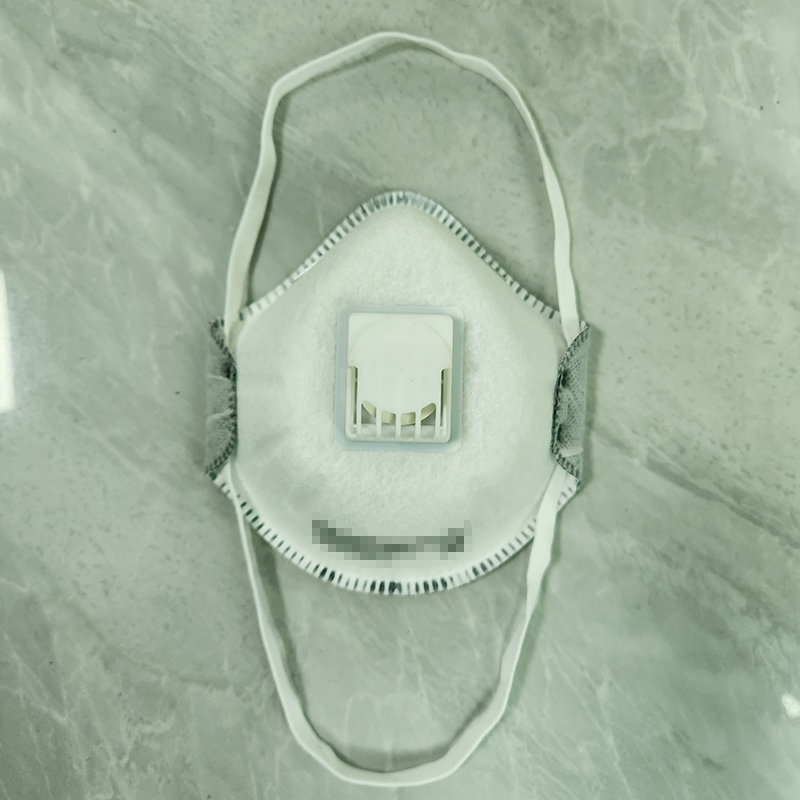

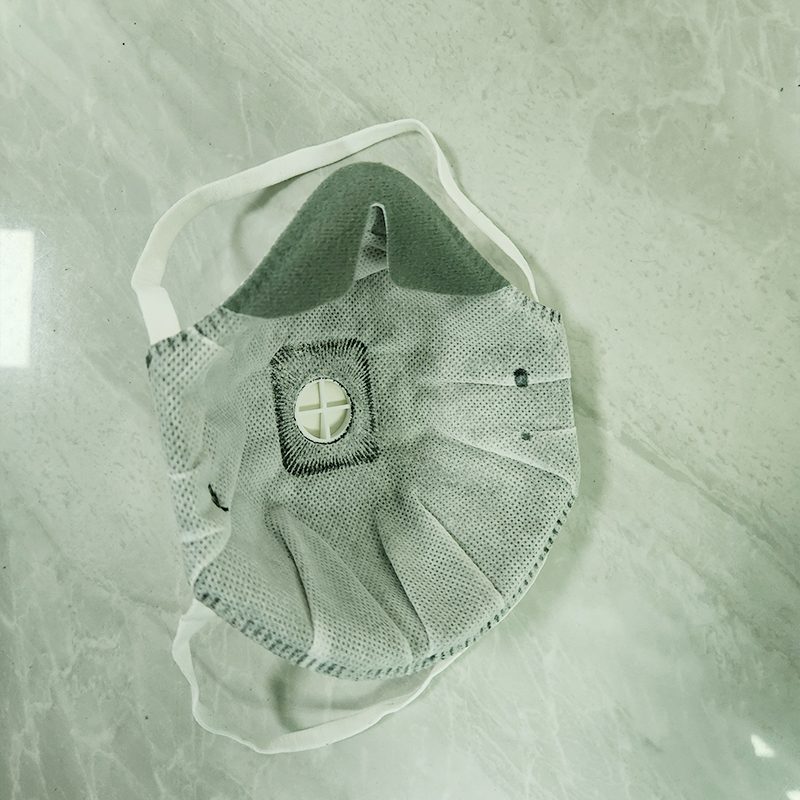

The machine is fully automated from raw materials to finished products; the outer layer is needle-punched brocade, the middle layer is melt-blown cloth and carbon cloth, the inner layer is non-woven fabric, and optional accessories include: face seal/nose pads/sponge strips, shaping and cup-shaped melting and cutting, mask nose bridge strips, pad printing, automatic closed-loop spot welding of elastic bands, ear flap welding, breathing valve punching, automatic valve welding, and fully automatic production of cup-shaped masks.
Product Parameters
| Parameter | Value |
|---|
| Speed | 15-20pcs/min |
| Output Power | 28Kw |
| Power Supply | AC220V 50/60Hz |
| Air Pressure | 0.6-0.8MPa |
| Weight | 3950KG |

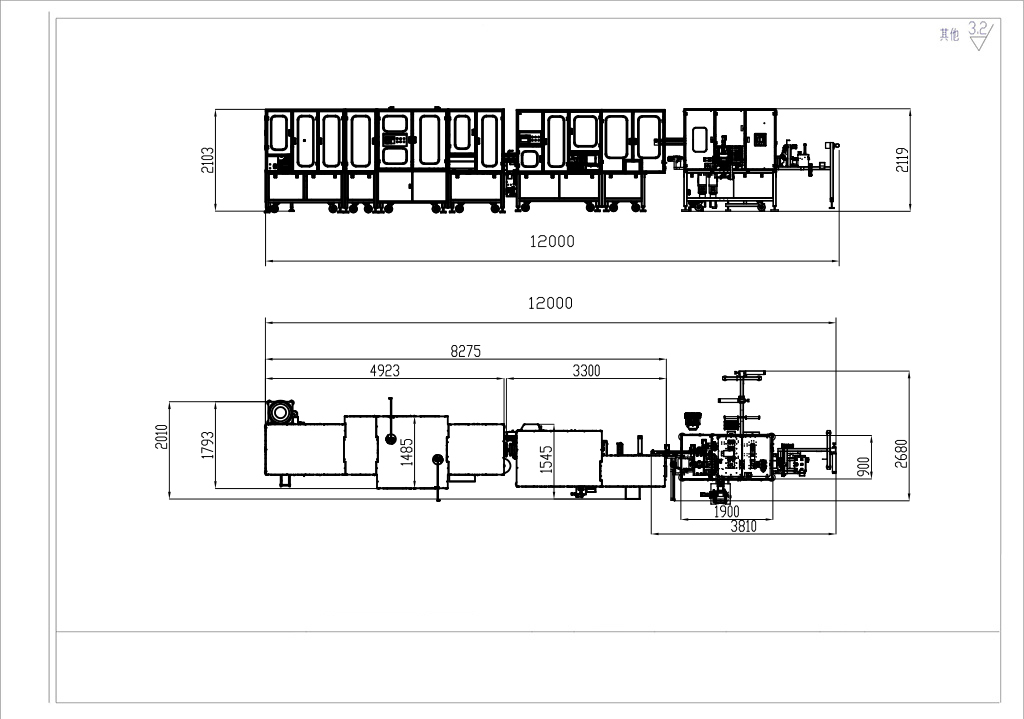

| Dimensions | 12000*2680*2119mm
|
Applicable Incoming Material Specifications
| Material Name | Gram Weight (g) | Width (mm) |
|---|
| Outer Layer Needled Cotton | 120 | 230 |
| Filter Layer Melt-Blown Fabric | 50 | 230 |
| Inner Layer Needled Cotton | 160 | 230 |
| Packing List |
| Part | Wooden Case Dimensions (M) | Gross Weight/KG | Net Weight/kg | Unit | Quantity | Total Cubic Meters/M³ |
| Rear End | 4.86 | 1.68 | 2.5 | 2200 | 2000 | PCS | 1 | 20.412 |
| Front End | 4.55 | 1.95 | 2.2 | 1990 | 1800 | PCS | 1 | 19.520 |
| Vibrating Disk | 0.75 | 0.85 | 1.28 | 200 | 150 | PCS | 1 | 0.816 |
Main Configuration -- Front Section
| Serial Number | Component Name | Quantity | Remarks |
|---|
| 1 | Material Rack | 2 sets |
|
| 2 | Hot Press Forming Mechanism | 1 set |
|
| 3 | Upper Sponge Strip Mechanism | 1 set |
|
| 4 | Welding and Assembly Mechanism | 1 set |
|
| 5 | Punching and Cutting Mechanism | 1 set |
|
| 6 | Mask Transfer Mechanism | 1 set |
|
| 7 | Waste Clamping Mechanism | 1 set |
|
| 8 | Intermediate Pressing and Conveying Mechanism | 1 set |
|
| 9 | Operating System | 1 set |
|
| 10 | Operation Panel | 1 set |
|
Main Electrical Components -- Front Section
| Serial Number | Component Name | Brand | Remarks |
|---|
| 1 | Cylinder | Airtac |
|
| 2 | Solenoid Valve | Airtac |
|
| 3 | Servo Motor | Delta |
|
| 4 | PLC | Mitsubishi |
|
| 5 | Bearing | Bosch |
|
| 6 | Linear Guide | HIWIN |
|
| 7 | Touch Screen | WEINVIEW |
|
| 8 | Circuit Breaker | Chint |
|
| 9 | Button |
|
|
Main Configuration -- Rear Section
| Serial Number | Component Name | Quantity | Remarks |
|---|
| 1 | Mask Fixing Mechanism | 1 set |
|
| 2 | Hot Melt Nose Bridge Mechanism | 1 set |
|
| 3 | Nose Bridge Secondary Fastening Mechanism | 1 set |
|
| 4 | Pad Printing Mechanism | 1 set |
|
| 5 | Headband Welding Mechanism | 1 set |
|
| 6 | Sponge Pasting Mechanism | 1 set |
|
| 7 | Finished Product Output Mechanism | 1 set |
|
| 8 | Transmission Mechanism | 1 set |
|
| 9 | Operating System | 1 set |
|
| 10 | Operation Panel | 1 set |
|
Main Electrical Components -- Rear Section
| Serial Number | Component Name | Brand | Remarks |
|---|
| 1 | Cylinder | Airtac |
|
| 2 | Solenoid Valve | Airtac |
|
| 3 | Servo Motor | Delta |
|
| 4 | PLC | Mitsubishi |
|
| 5 | Bearing | Bosch |
|
| 6 | Linear Guide | HIWIN |
|
| 7 | Touch Screen | Inovance |
|
| 8 | Circuit Breaker | Chint |
|
| 9 | Button |
|
|
